Pivot, Top or Bottom Mount Pivot Hinge - BEVELLED CHROME

Pivot Hinge - Bevelled Edge

SKU:
PHB-CH
Availability:
In Stock
$48.10
$57.81
(You save $9.71 )
Weight:
1.00 KGS
Width:
4.00 (cm)
Height:
10.00 (cm)
Depth:
12.00 (cm)
Current Stock:
Adding to cart… The item has been added
Description

Pivot, Top or Bottom Mount Square Pivot Hinge - BEVELLED EDGE

SAME AS CRL PPH01CH, PPH01BN, PPH01MBL

  • Solid Forged Brass Body
  • Stainless Steel 304 Pin
  • Spring Steel Springs
  • 3 year warranty
  • Wear Tested over 30,000 Hours
  • Finish Salt spray tested for 48 hours

Industry Standard Cut Out

Max door width 31 inches

Max door weight 100 pounds

DEDUCTIONS

STANDARD DEDUCTION FROM FLOOR TO BOTTOM OF GLASS IS 7/16". tHE SAME DEDUCTION APPLIES TO THE TOP IF ATTACHEING TO THE UPPER DOOR FRAME OR CEILING WITHOUT A HEADER BAR.

IF USING A HEADER, YOU REMOVE THE BASE OF THE TOP MOUNTED HINGE AND ATTACH TO A HEADER ADAPTER BLOCK WHICH IS SCREWED INTO THE HEADER - LEAVE 1/8' BETWEEN THE BOTTOM OF THE HEADER AND THE TOOP OF THE PIVOT HINGE BODY

ALLOW AT LEAST 3/16' FROM EDGE OF GLASS TO WALL OR ADJACENT GLASS

GLASS CUTOUTS FOR TOP AND BOTTOM

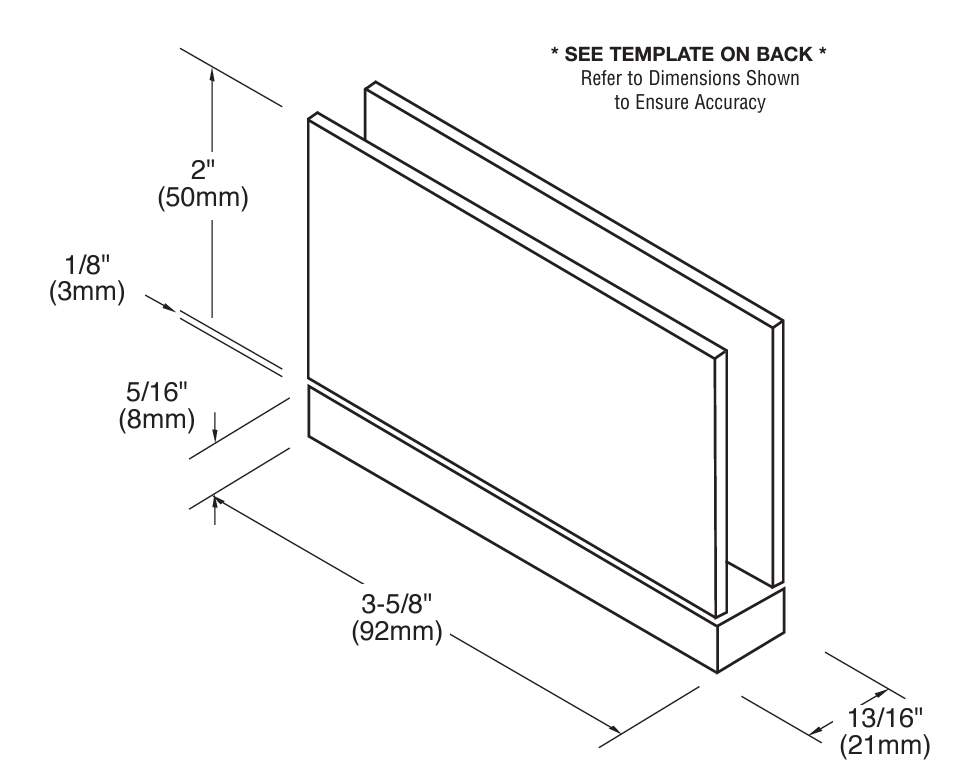

PRODUCT DIMENSIONS

Warranty
Product is warranted against manufacturer's defect for a period of three years from date of purchase.
