Product Description

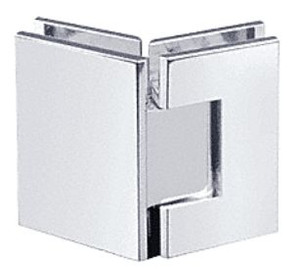

135 degree ADJUSTABLE Glass to Glass Regular Weight Hinge - Bevelled Edge
Set angle adjutsable after door has been installed.

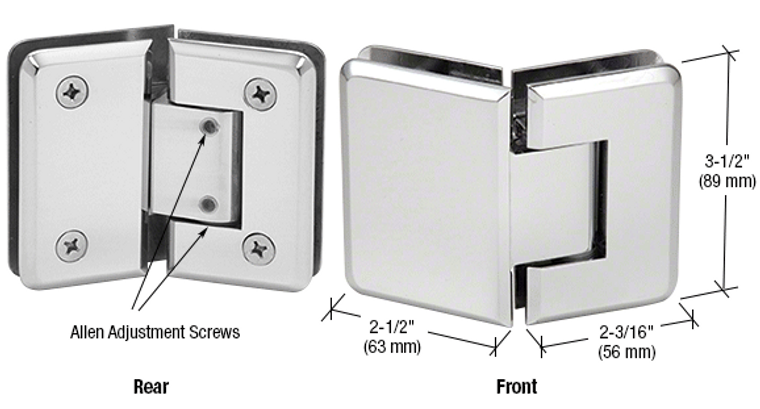

Loosen two small allen screws on the faceplate and set the door to the desired closiing angle then tighten
Avaiable in Chrome and Brushed Nickel
- Solid Forged Brass Body
- Stainless Steel 304 Pin
- Spring Steel Springs
- 3 year warranty
- Wear Tested over 30,000 Hours
- Finish Salt spray tested for 48 hours
Industry Standard Cut Out
- Solid Forged Brass Body
- Stainless Steel 304 Pin
- Spring Steel Springs
- 3 year warranty
- Wear Tested over 30,000 Hours
- Finish Salt spray tested for 48 hours
Maintenance
• Our hinges are greased at the factory for quiet and trouble-free operation. If there is any squeaking thatoccurs after installation, put a drop of "3 in 1 Oil" (also known as "household oil") on the white nylon washer that the hinge body pivots on. This washer is the component that acts as a buffer, so the body of the hinge doesn't pivot directly on the brass center block. This solution doesn't require the disassembly of the hinge.
Note: Do not use spray lubricant on these hinges. If the hinge has been disassembled, upon re-assembly, use white lithium grease to lubricate the interior mechanism.
• Never use an abrasive cleaner on the hardware. Many of the components are coated with a clear lacquer that will be irreparably damaged if subjected to harsh, abrasive chemicals. Advise your customer that drying the hardware with a clean, soft towel on a daily basis is the best way to maintain the hardware.
If mineral deposits build-up,
