Product Description

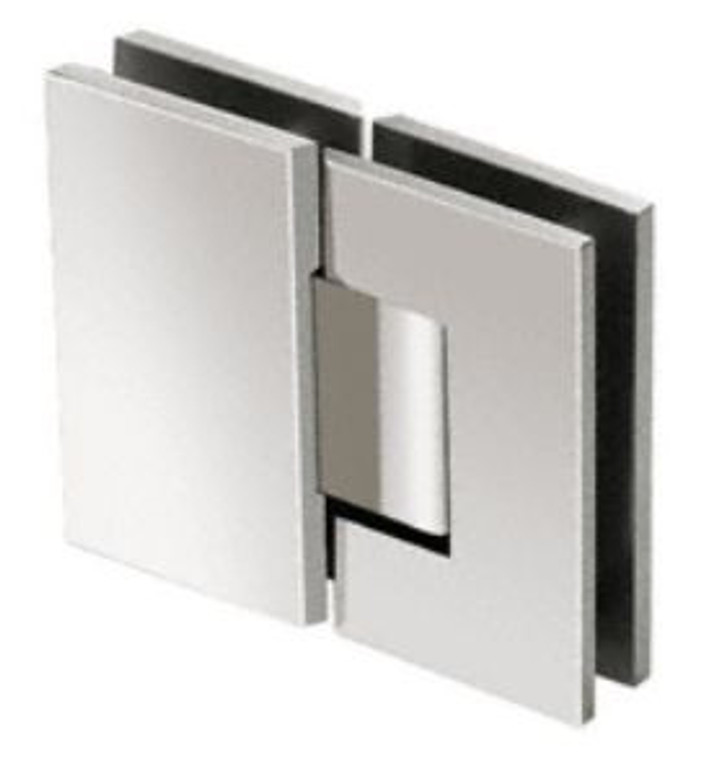

GLI Professional Glass to Wall 180 degree Glass to Glass Heavy Duty Hinge - Square Edge
Available in Chrome, Brushed Nickel, Matte Black and Brushed Gold / Satin Brass
- Solid Forged Brass Body
- Stainless Steel 304 Pin
- Spring Steel Springs
- 3 year warranty
- Wear Tested over 30,000 Hours
- Finish Salt spray tested for 48 hours
Capacities:
|
Maximum |
10mm (3/8”) Glass |
12mm (1/2”) Glass |
||
|
Capacities |
Weight |
Door Width |
Weight |
Door Width |
|
Using 2 Hinges |
50 KG / 110 LBS |
914mm / 36” |
50 KG / 110 LBS |
914mm / 36” |
|
Using 3 Hinges |
63 KG / 140 LBS |
914mm / 36” |
63 KG / 140 LBS |
914mm / 36” |
Cut out - use standard CRL Vienna Cut out
