Product Description
Pivot, Top or Bottom Mount Square Pivot Hinge - SQ
Available in Chrome, Brushed Nickel, Maatte Balck and Brushed Gold/ Satin Brass
- Solid Forged Brass Body
- Stainless Steel 304 Pin
- Spring Steel Springs
- 3 year warranty
- Wear Tested over 30,000 Hours
- Finish Salt spray tested for 48 hours
Industry Standard Cut Out
Max door width 31 inches
Max weight of door including all hardware 100 lbs
DEDUCTIONS
STANDARD DEDUCTION FROM FLOOR TO BOTTOM OF GLASS IS 7/16". tHE SAME DEDUCTION APPLIES TO THE TOP IF ATTACHEING TO THE UPPER DOOR FRAME OR CEILING WITHOUT A HEADER BAR.
IF USING A HEADER, YOU REMOVE THE BASE OF THE TOP MOUNTED HINGE AND ATTACH TO A HEADER ADAPTER BLOCK WHICH IS SCREWED INTO THE HEADER - LEAVE 1/8' BETWEEN THE BOTTOM OF THE HEADER AND THE TOOP OF THE PIVOT HINGE BODY
ALLOW AT LEAST 3/16' FROM EDGE OF GLASS TO WALL OR ADJACENT GLASS
ALLOW AT LEAST 3/16' FROM EDGE OF GLASS TO WALL OR ADJACENT GLASS
GLASS CUTOUTS FOR TOP AND BOTTOM

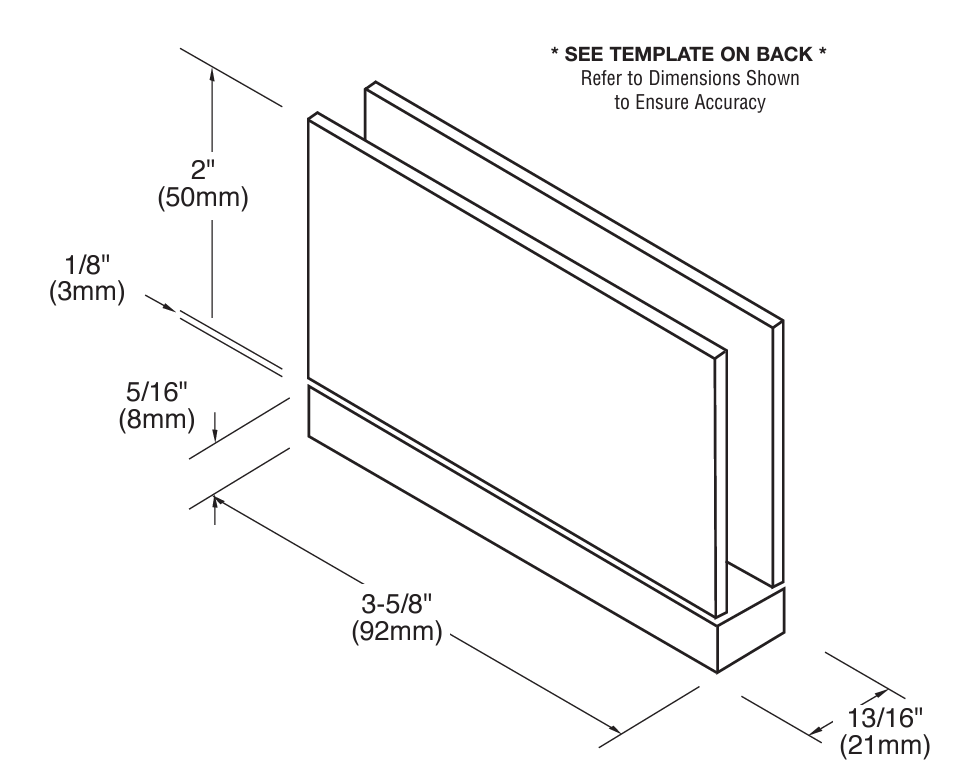

PRODUCT DIMENSIONS
