Product Description

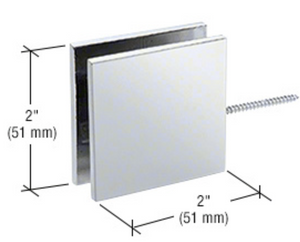

Transom Clamp 2x2 inches. Square edges. Center Swivel.
This product is designed to a moveable transom to a fixed glass panel.
Available in Chrome, Brushed Nickel, Matte Black and Brushed Gold / Satin Brass Finishes
It consists of two single hole glass clamps ( GC1H )joined by a bolt and lock nut and separated by one or two #10 nylon washers.
- Solid Brass Body
- Fine Electroplate Finish - Salt water Spray Tested
- 3 Yr Guaranty
- Center Nylon Washer Swivel with Locknut

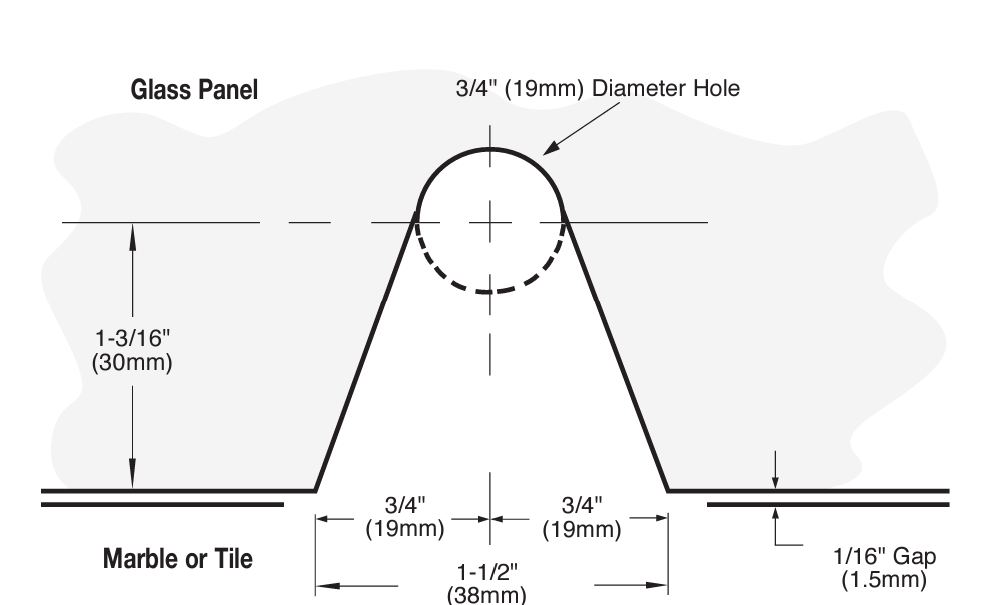

Cutout - both pieces of glass require the cutout below
Deduction
The gap between the panels should be 1/8th"
