Product Description

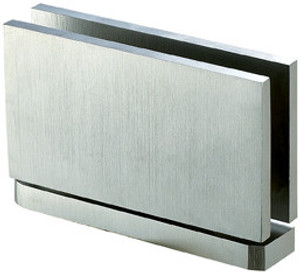

GLI Professional Glass to Wall H-Back Plate Heavy Duty Weight Hinge - SQUARE EDGE
Available in Chrome, Brushed Nickel, Matte Black and Brushed Gold / Satin Brass
2 hinges support 110 pounds, 36 inch wide door, 3 hinges support up to 140 Lbs
- Solid Forged Brass Body
- Stainless Steel 304 Pin
- Spring Steel Springs
- 3 year warranty
- Wear Tested over 30,000 Hours
- Finish Salt spray tested for 48 hours

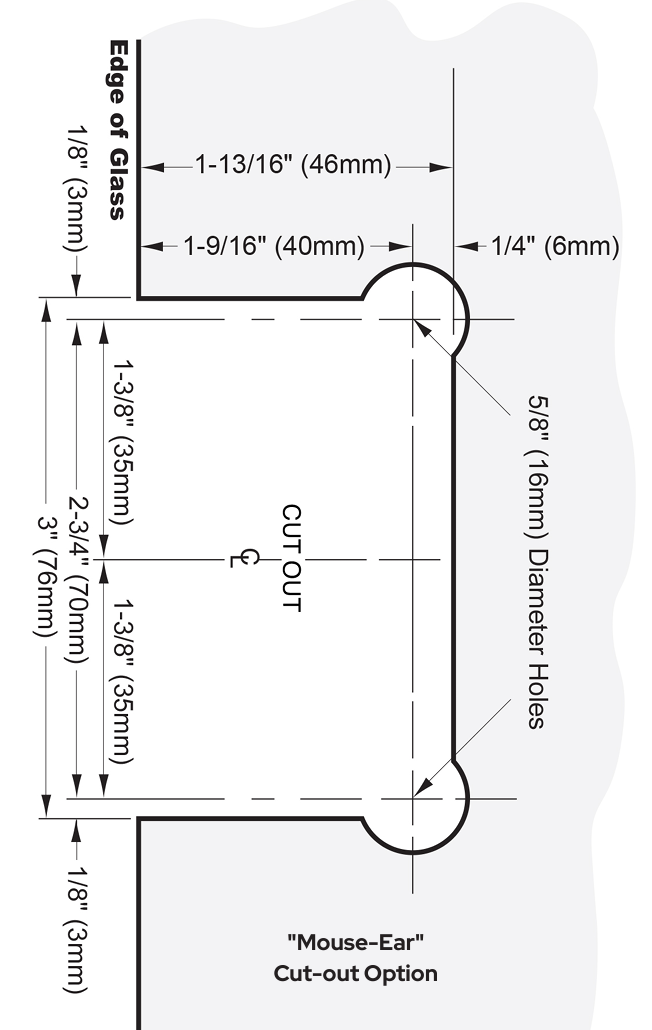

Industry Standard Cut Out - (CRL Vienna)
Maintenance
• Our hinges are greased at the factory for quiet and trouble-free operation. However even the best quality control sometimes misses a few assembly errors. If you can hear any grinding when you swing the door or there is a cracking sound it is likely that either the Pivot Pin is out of alignment or there is insufficient white lithium grease in the Pivot Pin chamber. Check that the Pivot Pin is firmly seated in the bottom of the hinge body u-slot and tighten the Allen screws that hold the Pivot Pin in place. If the mechanism still grinds, remove the Backplate, stainless steel springs and Push Plates and put a small amount of white lithium grease in the pivot chamber underneath where the push plates press against the Pivot Pin. Replace the springs and Push Plates and move the hinge back and forth to spread the grease over the Pin within the chamber. Replace the backplate and there will be no more grinding.
Note: Do not use spray lubricant on these hinges. If the hinge has been disassembled, upon re-assembly, use white lithium grease to lubricate the interior mechanism.
• Never use an abrasive cleaner on the hardware. Many of the components are coated with a clear lacquer that will be irreparably damaged if subjected to harsh, abrasive chemicals. Advise your customer that drying the hardware with a clean, soft towel on a daily basis is the best way to maintain the hardware.
If mineral deposits build-up, mix a couple of drops of a mild liquid soap (such as Ivory or a similar product) into a cup of warm water. Using a soft, non-abrasive cloth, clean the hardware. Rinse thoroughly with clean, warm water and dry.
